Hailing Devices

Bulldog Tactical

Bulldog Tactical carries HyperSpike hailing systems. From the portable HS-10 series that is a modern, high-Tech replacement for the old “bullhorn” to stand alone high output alert systems. HyperSpike products even hold the Guinness Book of Records loudest electro-acoustic projection device with a sound level of 182.2 dB.

About HyperSpike:

HyperSpike products are manufactured by Ultra Electronics-Undersea Sensor Systems Inc. (USSI). Their manufacturing plant is located in Columbia City, Indiana. The units produced by HyperSpike are high quality and made of composite materials or carbon fiber. Each unit is sealed to protect against extreme environmental conditions and are used around the country, at sea, and in many desert environments. This has made the units a favorite of Law Enforcement, Fire Departments, and the Military around the world.

Who uses HyperSpike Products

Products ranges from small communities in North America, to cities such as Indianapolis, IN. They are also used in militaries around the world. While there is a distinct use for these products in Public Safety and the Military, they are also useful for Event Crowd Control and Bird Control.

HS-10 Black

HS-10 Red

The unique and proprietary technology of HyperSpike makes their systems like the HS-10 the next generation of bullhorn speaker/megaphone replacement. The HS-10 is a self-contained very portable acoustic hailing device weighing just 12-15 pounds. The HS-10R has an adjustable shoulder strap that keeps it secure in moving vehicles. To see this in action, go to You Tube and watch some HyperSpike units in action. One note, when you do a search using HyperSpike skip the tennis shoe videos of the same name. HyperSpike even shows the device in use from a helicopter in flight.

With a push of a button, the HS-10 has an easily accessible, built-in, high frequency alert tone. The device creates an acoustical output peak of 144dB’s, the unit has a communication range of over 750 meters. This allows the unit to easily cut through high background noise environments to ensure that unmistakable commands and alerts can be delivered and heard. The commands and authoritative messages are heard with exceptional clarity.

Characteristics of the HS-10 system:

144db SPL Peak Acoustic Output

Long Range: 750 meters plus

Narrow Acoustic Beam: +- 15 degrees

Frequency Range: 400Hz – 7kHz

Highly Intelligent Voice

STI: 0.85 out of 1.0

Built-in High Frequency Alert Tone

Light Weight: 12 – 15 pounds depending on model. We demo with the HS-10R (15 lbs.)

Rugged Aerospace Composite Construction

Integrated Record/Play Functionality

Ergonomic Controls

Applications for the HS-10:

Crowd Control

Search and Rescue

First Responders

Law Enforcement

Campus and Public Safety

Emergency and Event Control

Maritime Communication

Border and Port Protection

Bird Control

Some of the optional accessories include:

Desktop Charger

Vehicle Charger

Auxiliary Battery

Transit Case

Bluetooth Accessary Accommodation

Universal/Tripod Mount

Magnetic Mount

The HS-10 package includes:

Battery Charger

Microphone

Line Input Cable

HyperSpike Mobile App

Shoulder Strap (HS-10R only)

Accessory Bag (HS-10R only)

HS-14

With the proprietary HyperSpike® technology, the HS-14 is a self-contained, lightweight, portable acoustic hailer for communicating long distances and penetrating high background noise environments. With an acoustic footprint up to 1500 meters, the HS-14 packs a peak acoustic output of 151 dB to ensure clear and authoritative voice commands are clearly understood.

Powerful deterrent tones which enhance military and security personnel’s response capabilities are easily accessible with the built-in high frequency alert tone.

Weighing only 37 lbs., the rugged, lightweight carbon fiber reinforced housing is easily transported and withstands extreme maritime and desert environments.

An exceptional STI rating of 0.81 out of 1.0 combined with an extended frequency range ensures authoritative voice commands are clearly delivered to the intended target.

Characteristics of the HS-14

148 dB SPL peak acoustic output
Long range: 1500 m
Narrow acoustic beam: +/-12°
Wide frequency range: 300 Hz - 8 kHz, optimized for human voice
STI 0.81 out of 1.0
Built-in high frequency alert tone
Internal 16 GB file player
Built-In thermal management system to prevent thermal shutdown

Applications

Military Security
Small Craft & Vehicles
Perimeter Protection
Law Enforcement
Crowd Control
Fire Services
Wildlife Management
Maritime
Border & Port Protection

HS-14 RAHD

Combining the HyperSpike® HS-14 high powered acoustic technology with a remote control pan tilt system makes the HS-14 RAHD™ ideal for perimeter security and sound reinforcement applications. With an acoustic footprint of up to 1500m, clear and authoritative voice commands are broadcast to intended targets with industry leading intelligibility.

The HS-14 RAHD™ comes standard with the HyperSpike® Command & Control Center, providing operators with a simplified, modern control panel, allowing the user to focus on the job at hand. The Command & Control Center can be accessed from behind a desk or mobile on a wireless network while on the move, providing full functionality regardless of device size or operating system.

Adding an HD camera and high-power search light to the HS-14 RAHD™ is as simple as plug and play. The Command & Control Center is aware of attached devices and populates or omits control panels on the graphical user interface as required. Optional specialized sensors, such as thermal imagers and laser dazzlers, can also be easily added to the product to enhance security features.

The acoustic punch of the HS-14 speaker, combined with the HD camera and a high-powered search light, makes HS-14 RAHD™ the most robust perimeter security and sound reinforcement product on the market.

HS-14 RAHD Characteristics

148 dB SPL peak acoustic output
Narrow acoustic beam: +/- 12°
Wide frequency range: 300 Hz – 8 kHz optimized for human voice
Communication range: 1,500 meters
Ethernet addressable for remote capability
Command & Control from desktop or handheld device

Applications for the HS-14 RAHD

Military Security
Maritime & Port Security
Perimeter Protection
Law Enforcement
Oil & Gas Platforms
Wildlife Avoidance
Commercial Shipping

HS-18

Combining Ultra’s unique and proprietary HyperSpike® technology with the innovative Opti-Port equipment bay, the customizable HS-18 is an ideal sound reinforcement solution. With 156 dB of forceful acoustics, operators have the ability to issue clear, authoritative verbal commands and cut through high background noise.

Security operations are enhanced with the HS-18’s first-to-market, Opti-Port equipment bay. Easily configured with an optional video camera, search light, or laser/dazzler, mission-critical sensors give security personnel additional time and valuable information to evaluate a potential threat.

With the Opti-Port equipment bay located in the center of the HS-18, optional sensors are inherently centered in the middle of the acoustic wave, minimizing calibration and maintenance time.

With an acoustic footprint of 2000 m, clear, intelligible and authoritative commands are broadcast to intended targets with industry leading clarity.

HS-18 Characteristics:

156 dB SPL peak acoustic output
Long range: 2000 m
Narrow acoustic beam: +/-5°
Wide Frequency Range: 245 Hz - 10 kHz, optimized for human voice
STI 0.96 out of 1.0
Pan & tilt capable
Built in high frequency alert tone
Self-contained electronics
Compact carbon fiber construction

Applications for the HS-18:

Military Security
Maritime & Port Security
Perimeter Protection
Law Enforcement
Oil & Gas Platforms
Airports & Runways
Commercial Shipping

Yacht & Cruise line Security

HS-18 RAHD

Combining Ultra’s unique and proprietary acoustic device HyperSpike® technology with a pan & tilt positioning device from Moog, the HS-18 RAHD™ is the ideal sound reinforcement solution and acoustic deterrent device for remote locations. With 156 dB of penetrating acoustics, operators have the ability to issue authoritative verbal commands in military crowd control situations while cutting through high background noise environments. The HS-18 RAHD™ has an acoustic footprint of 2000 m; delivering clear, intelligible, and authoritative commands to an intended target with industry leading voice clarity.

The new HyperSpike® Command and Control software is a device hosted web interface; allowing a user to simply plug the HS-18 RAHD™ into a network connection and be up and running in seconds. The Command and Control web interface gives an operator the capability to have full control of one or multiple RAHDs on a single network. The operator can quickly and easily program the HS-18 RAHD™ to perform automated tours of a facility. Audio tracks, alert tones, and live voice messages can all be played and stored on the RAHD Command and Control software. The HS-18 RAHD™ can be quickly integrated with a high intensity light, video camera, or laser dazzler. The integrator or installer mounts the needed accessory upon or within the unit, reboots the RAHD, and refreshes their web browser, and the accessory is immediately recognized.

Characteristics for the HS-18 RAHD:

156 dB SPL peak acoustic output
Narrow acoustic beam: +/- 5°
Wide frequency range: 245 Hz - 10 kHz optimized for human voice
Ethernet addressable for remote capability
Compact enclosure to reduce radar cross section & wind loading
Opti-Port equipment bay positions optics with acoustic beam
Compatible with many optics & cameras

Application for the HS-18 RAHD:

Military Security
Maritime & Port Security
Perimeter Protection
Law Enforcement
Oil & Gas Platforms
Wildlife Avoidance
Commercial Shipping

TCPA-4

The TCPA-4 is an omnidirectional line array system that is comprised of four TCPA directional speakers that utilize patented Hyperspike high powered speaker array technology to project intelligible voice and penetrating alert tones. The result is an industry leading line array pa system that provides unmatched clarity and intelligibility. This solution for four directional speakers is perfect for mass crisis notification in the event of an emergency.

The TCPA-4 is constructed using durable powder coated aluminum and composite materials that make the unit ideal for both indoor and outdoor applications. This crisis notifications system can be used in scenarios for crowd control, college campus, and more.

Unlike most omnidirectional speaker pa systems, the TCPA-4 speakers can articulate to vary the dispersion of the line array speakers in a manner that is most beneficial to the end user.

Characteristics of the TCPA – 4:

38 dB SPL acoustic output
Long Range: 1 mile
Dispersion: 360 x 90
Wide frequency range: 425 Hz - 7kHz
Lightweight at 150 lbs
Rugged composite material

Applications for the TCPA – 4:

Crowd control
First Responders
Emergency and event control
Border and port protection
Indoor and outdoor PA

MA – 1 UL 1480A CID1

With the constant need to alert and inform, the HyperSpike® MA-1 is a UL 1480A listed and CID2 Hazardous Location certified, 360° Mass Notification System. With an acoustic output of 143 dB, the lightweight MA-1 high power speaker broadcasts crystal clear voice messages and tones to a 4 sq mile area; making the MA-1 the life safety speaker of choice.

Leading the industry in voice intelligibility, speaker design achieves an exceptional STI rating of 0.91 out of 1.0, ensuring commands are clearly transmitted and heard, even in high noise environments.

Housed in a waterproof UV-resistant enclosure, the battle-tested MA-1 has become the trusted mass notification system for the US military’s forward operating bases in Afghanistan and Iraq. Ideal for rapid deployment, the MA-1 system can go from its road case to fully operational in under five minutes.

The MA-1 is the “clear” choice for alerting and facilitating a response before, during, and after an event!

Characteristics for the MA – 1 UL 1480A CID1:

UL 1480A Listed
Class I, Division 2, Groups, A, B, C, and D Hazardous Locations Certified
High power, Omni-directional, 143 dB SPL
4 square mile range of use
Wide frequency range: 125 Hz - 8kHz
STI 0.91 out of 1.0
450 W peak power per side
Intelligible announcements and warning tones

Applications for the MA – 1 UL 1480A CID1:

Emergency Notification
Force Protection
Disaster Relief Alerting
Temporary Alerting
Pier-side Alerting
Military Security
Campus Security

MA-2 UL 1480A CID2

With the constant need to alert and inform, the HyperSpike® MA-2 is a UL1480A, Class I, Division 2 Hazardous Location certified, 360° Mass Notification System. With an acoustic output of 148 dB, the MA-2 high power omni-directional sound speaker broadcasts live and pre-recorded voice commands and tones over a 12 square mile area; making the MA-2 the life safety directional sound speaker of choice.

Leading the industry in voice intelligibility, the MA-2 speaker design achieves an exceptional STI rating of 0.91 out of 1.0; ensuring commands are clearly transmitted and heard, even in high noise environments.

Housed in a waterproof, UV-resistant enclosure, the MA-2 utilizes battle-tested speaker design architecture that has become the trusted mass notification system for the US military's forward operating bases in Afghanistan and Iraq.

Ideal for rapid deployment, the MA-2 system can go from its road case to fully operational in under five minutes with minimal man-power.

Characteristics for the MA-2 UL 1480A CID2:

UL 1480A Listed
Class I, Division 2, Groups, A, B, C, and D Hazardous Locations Certified
148 dB SPL peak acoustic output
12 square mile range of use
Wide frequency range: 100 Hz - 7 kHz, optimized for human voice
STI rating of 0.91
Remote operation capable
Intelligible live & pre-recorded voice announcements & warning tones

Applications for the MA-2 UL 1480A CID2:

Emergency Notification
Power Plants
Force Protection
Disaster Relief Alerting
Temporary Alerting
Pier-side Alerting
Maritime & Port Security
Military Security
Campus Security

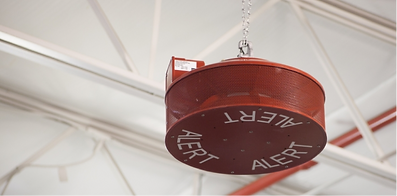

Omni – UL 1480

The TCPA-Omni is the perfect solution for both indoor and outdoor mass notification needs. It is UL 1480 and ULC S541 Listed for General Notification and Fire and Emergency Signaling. The TCPA-Omni provides both crystal-clear voice and high impact tones, making it possible for one speaker to service all of your acoustic needs.

With an STI of 0.85 out of 1.0, the Omni is the class leader in clarity. At a scant 22 pounds, and a diameter of 19 inches; with an acoustic output of 129 dB, the TCPA-Omni will be heard more than it is seen.

The acoustic punch of the TCPA Omni allows for fewer units to be installed in large industrial complexes, increasing intelligibility while reducing installation and maintenance costs.

Characteristics of the TCPA-OMNI 1480:

UL 1480 and ULC S541 listed
129dB SPL
1/4-mile radius communication range
Wide frequency range: 350Hz - 5kHz, optimized for human voice
50-200 watts
70v drive
Intelligible voice announcements and sharp warning tones

Applications for the OMNI-UL 1480:

Fire and life safety
Emergency notifications
Campus communications
Manufacturing facilities
Warehouses
Corporate campuses
Airports/airports hangars
Arenas/stadiums
Parking structures

MA – Micro UL 1480

The MA-Micro is a UL 1480A listed, Class I, Division 2, Hazardous Location certified, 360° Mass Notification System. The lightweight, high power speaker broadcasts live and pre-recorded voice commands and tones up to 134 dB over a 0.5 square mile area; making the MA-Micro the life safety speaker of choice.

Leading the industry in voice intelligibility, the MA-Micro speaker design achieves an exceptional STI 0.84/1.0, ensuring commands are clearly transmitted and heard, even in high noise environments.

The MA-Micro is constructed with a waterproof UV-resistant enclosure. Its the little brother to the battle tested MA-1, which has become the trusted mass notification system for the US military’s forward operating bases domestic and in theater.

Characteristics for the MA-Micro UL 1480A:

UL 1480A Listed
Class I, Division 2, Groups, A, B, C, and D Hazardous Locations Certified
118 dB SPL peak acoustic output
0.5 square mile range of use
Wide frequency range: 125 Hz - 8 kHz, optimized for human voice
STI 0.84 out of 1.0
650 W peak power
Intelligible announcements & warning tones
Suitable for large indoor and outdoor environments

Applications for the MA-Micro UL 1480A:

Emergency Notification
Life Safety
Disaster Relief Alerting
Pier-side Alerting
Military Security
Campus Security
Flight Decks
Manufacturing Facilities
Arenas
Indoor Facilities

HyperSpike Mobile Application

One really great feature for the HyperSpike system is the Acoustical Hailing Device (AHD) which is the first acoustical hailing system on the market to offer a smart phone application. The HyperSpike Mobile Application was developed in an effort to modernize the AHD experience and provide customers with a modern user interface and features for remote control of their device. I have even made pre-taped alerts that I can use from my smart phone to demonstrate how diverse the device can be used when it is needed. It can even loop the messages for continuous use. This allows first responders to deliver the same alert, in different areas, using separate devices and smart phones. You ensure a common message and eliminate different alerts from being delivered over a wide area. This increases the mission message and eliminates confused people you are trying to alert.

Contact to Purchase
